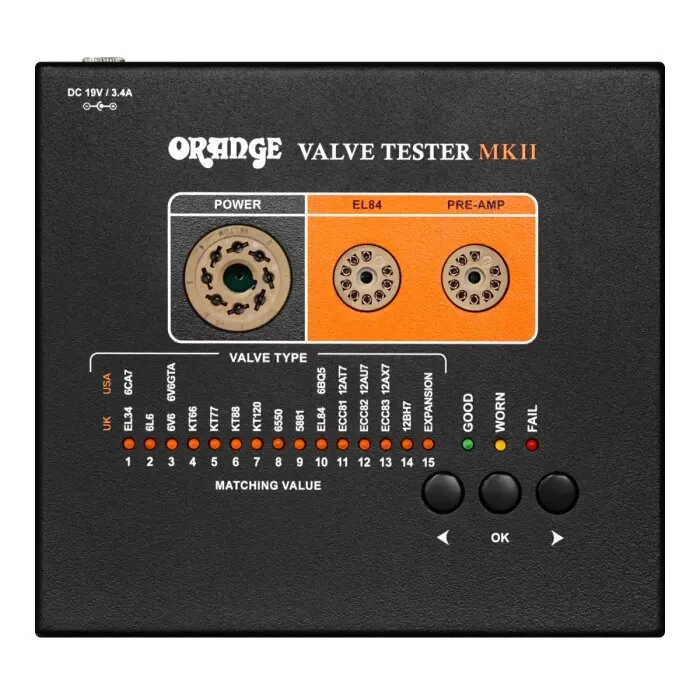

VALVE TESTER MKII
Automatically tests Hi-Fi/guitar amplifier valves and displays their condition, performing a wide range of tests, quickly and accurately.
Designed & Made in the UK
The Orange Valve Tester MKII, proudly crafted and engineered in the UK, revolutionises valve-testing technology. With seamless precision and simplicity, it effortlessly conducts a comprehensive array of tests, setting a new global standard for both Hi-Fi enthusiasts and service professionals.
Complexity made simple
The simplicity of operation belies the complexity of what happens inside the unit during each test. Inside is a sophisticated microprocessor controlled testing system carrying out a series of complex inter-electrode switching and measurement exercises. Requiring no knowledge of valve theory a user simply inserts a valve into the correct socket, selects the valve type from the list and presses the OK button. The status of the valve under test is quickly revealed.
Portable and Convenient
The Orange Valve Tester MKII is a sophisticated, simple to use, stylish and portable unit. Its usefulness has been designed to meet the needs of both seasoned audiophiles and those new to testing valves. The device’s fully automatic testing and matching capabilities ensure optimal valve performance across a wide range of audio valve equipment allowing users to effortlessly maintain quality, maximum performance and limit possible distortion of their Hi-Fi amplifier caused by substandard, worn or faulty valves.
Expansion Modules Available
The Orange Valve Tester MKII’s new optional expansion modules will be particularly appealing to Hi-Fi enthusiasts. It allows the testing of directly heated valves such as the 300B and other valve types including EF86, EZ80, 6SN7 and rectifier valve GZ34.
STYLE: TEST EQUIPMENTSTYLE: TEST EQUIPMENT
TESTABLE VALVES: EL34, 6CA7, 6L6, 6V6, 6V6GTA, KT66, KT77, KT88, KT120, 6550, 5881, EL84, 6BQ5, ECC81, 12AT7, ECC82, 12AU7, ECC83, 12AX7, 12BH7
WEIGHT: 1.56 KG ( 3.44 LBS )
INCLUDED IN BOX: 1 X VALVE TESTER MKII ｜ 1 X POWER SUPPLY ｜ 1 X MAINS LEAD ｜ 1 X MANUAL ｜ 1 X PENCIL
DIMENSIONS ( W X D X H): 17.6CM X 16.2 X 6.8CM (6.9 X 6.4 X 2.7 INCH)
EXPANSION MODULES CURRENTLY AVAILABLE: 3000B, 6SN7, EF86, EZ80, GZ34
EXPANSION MODULE DIMENSIONS (W X D X H) 11CM X 5.5 X 6CM (4.33 X 2.17 X 2.36 INCH)
EXPANSION MODULE WEIGHT: 0.34 KG ( 0.75 LBS )
