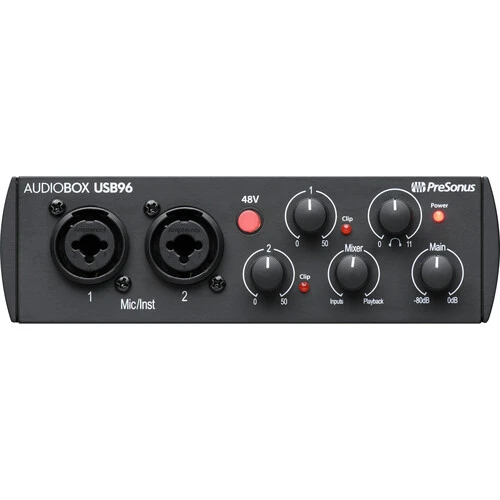

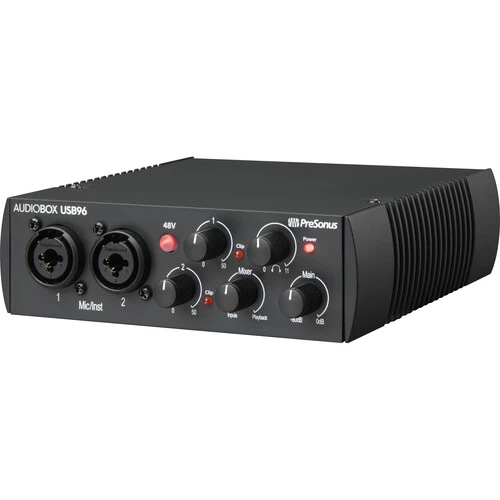

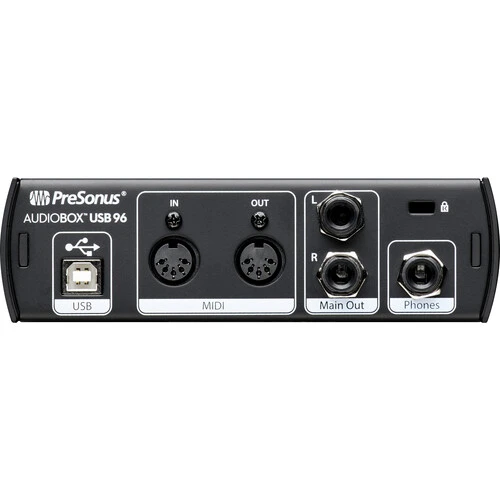

כרטיס קול 2×2 PreSonus AudioBox USB® 96 25th Anniversary

כולל תוכנת הקלטה Studio One Artist

עם הרישיון לתוכנה תקבלו גישה גם לקהילה המקוונת העצומה של מוסיקאים ואנשי סאונד המשתמשים ב-Studio One ברחבי העולם.



Features

Simple, affordable stereo-recording solution for singer/songwriters, podcasters, guitar or guitar-bass collaborations and more

Professional-quality mic preamps: Your microphone will sound its best thanks to this low-noise, high-headroom design with +35 dBu of adjustable gain and switchable +48V phantom power for professional XLR condenser mics

Recording software included: Get started right away with PreSonus® Studio One® Artist recording software and Studio Magic Suite software bundle

Bus-powered by your connected USB device so no need for an additional power supply

2 combo mic/instrument inputs with high-quality mic preamplifiers: Connect mics, guitars and basses

One loud, clear ¼-inch stereo headphone output

Mix control lets you create a custom blend between inputs and playback for monitoring recordings with zero latency

Two balanced TRS ¼-inch main outputs for studio monitors or other speakers

Professional audio quality: Studio-grade converters allow for up to 24-bit/96 kHz recording and playback assuring the highest quality possible

USB 2.0-compatible



World-Class Recording Software Included.

The AudioBox USB 96® works with virtually all macOS, Windows, iOS and iPadOS audio-recording software and comes with a license for PreSonus®’ Studio One® Artist for a complete recording solution. Studio One is easy to learn and enables you to compose, record, and produce without getting distracted by the tools.



Electronics

Voltage

USB Bus Powered

Inputs

Two - Combo Mic/Instrument Inputs (XLR Female Balanced, 1/4" TS Female Unbalanced)

Headphone Jack

1/4" TRS Active Stereo

Line Out

Two - 1/4" Balanced (Left and Right)

Miscellaneous

Connection Type

USB 2.0 Bus-Powered

MIDI I/O

Dual 5-Pin Female DIN

Microphone Preamp

Total Harmonic Distortion

THD+N (Unweighted, 1 kHz @ +4 dBu Output, Unity Gain) < 0.008%

Signal To Noise Ratio

(Unity Gain, Ref. = +4 dBu, 20 Hz to 22 kHz) > 95 dB

Common Mode Rejection Ratio

(1 kHz, 55 dB Gain) > 45 dB

Gain Control Range

(± 1 dB) 0 dB to 35 dB

Microphone Preamp Maximum Input Level

(Unity Gain, 1 kHz @ 0.5% THD+N) -3 dBu

Phantom Power

(±2 VDC) +48 VDC

Frequency Response

(±3.0 dB) 20 Hz to 20 kHz

Microphone Preamp Input Impedance

(Balanced) 1200Ω

Main And Line Outputs

Main And Line Outputs Output Impedance

51Ω

Headphone Outputs

Headphone Outputs Maximum Output

60 mW/Channel @ 60Ω Load

Frequency Response

(±1.0 dB) 20 Hz to 30 kHz

Digital Audio

Digital Audio Dynamic Range

ADC Dynamic Range (A-Weighted, 48 kHz Sample Rate): 105 dB, DAC Dynamic Range (A-Weighted, 48 kHz Sample Rate): 105 dB

Digital Audio Bit Depth

24

Supported Sample Rates

44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
